Kafka OAuth 2 Authentication with Strimzi and Keycloak

In modern event-driven architectures, Apache Kafka often serves as the central nervous system connecting multiple teams, services, and even organizations. As Kafka adoption grows, so does the need for a robust, centralized identity and access management solution.

This two-part series walks through configuring a Strimzi-managed Kafka cluster with OAuth 2 authentication and Keycloak-based authorization - a production-grade approach to multi-tenant Kafka security on Kubernetes.

Part 1 (this post): OAuth authentication - configuring the broker, provisioning Keycloak clients, and verifying token-based access.
Part 2: Keycloak authorization - fine-grained, resource-level permissions using Authorization Services.

Why OAuth with Strimzi and Keycloak?

Traditional Kafka authentication mechanisms like SASL/PLAIN or SASL/SCRAM require managing credentials directly within the Kafka ecosystem. This becomes cumbersome at scale, especially in multi-tenant environments. Combining Strimzi, Keycloak, and OAuth 2 offers several advantages:

Centralized identity management: Keycloak provides a single source of truth for all client identities, secrets, and access policies. When integrated with LDAP or Active Directory federation, organizational structures map directly to Kafka access controls.
Token-based security: Short-lived JWT tokens replace long-lived static credentials. Tokens are validated locally on the broker using JWKS, eliminating per-request calls to Keycloak and keeping latency low.
Multi-tenant isolation: Prefix-based resource patterns (e.g., Topic:timkoko-*) combined with group-based policies ensure tenants can only access their own data.
Fine-grained authorization: Keycloak Authorization Services allow defining permissions at the resource and scope level - controlling exactly which clients can read, write, or manage specific topics and consumer groups. This is covered in Part 2.

Key Keycloak Concepts

Before we go into the configuration details, here is a brief overview of the Keycloak concepts relevant for authentication:

Realm: An isolated namespace for managing users, clients, and policies. We create a dedicated kafka realm to keep Kafka-related configuration separate from other applications sharing the same Keycloak instance.
Client (Service Account): Represents a Kafka application. Each tenant and the broker itself gets its own client with a client_id and client_secret, using the client_credentials grant type. Clients are configured with serviceAccountsEnabled: true as there are no interactive user logins involved.
Audience Mapper: A protocol mapper ensuring the aud claim in the JWT includes kafka-broker, so brokers can verify the token was issued for Kafka and not for another service.
Groups: Organize service accounts into logical units. Each tenant gets a parent group with reader and writer subgroups. These become relevant in Part 2 for authorization.
Authorization Services: Enabled only on the kafka-broker client, providing resources, scopes, policies, and permissions - covered in detail in Part 2.

Prerequisites

This guide assumes:

A Kubernetes cluster with the Strimzi Operator (v0.49.0+) installed
A Kafka cluster running in KRaft mode managed by Strimzi (API version kafka.strimzi.io/v1)
A Keycloak instance running and accessible within the cluster (e.g., http://keycloak-service.keycloak.svc.cluster.local:8080)
A Keycloak realm named kafka already created

Users

The following users are configured in this setup:

User	Kafka User	Password / Secret	Description
Kafka Broker	kafka-broker	kafka-broker-secret	Kafka Broker Client (Authorization Services)
Kafka Admin	kafka-admin	kafka-admin-secret	Kafka Admin (superuser)
Organization A	timkoko	timkoko-secret	Sample Tenant A (timkoko)
Organization B	acmecorp	acmecorp-secret	Sample Tenant B (acme corp.)
Organization C	umbrellacorp	umbrellacorp-secret	Sample Tenant C (umbrella corp.)

Topics

The following topics are created for testing:

Topic	Tenant / Org	Description
timkoko-topic-demo-v0	timkoko	Topic accessible by timkoko user
acmecorp-topic-demo-v0	acmecorp	Topic accessible by acmecorp user
umbrellacorp-topic-demo-v0	umbrellacorp	Topic accessible by umbrellacorp user

Kafka Cluster Configuration

Listener and Authentication

The Strimzi Kafka resource supports multiple listeners, each with its own authentication method. We configure three listeners: a plain TLS listener, a mutual TLS listener, and an OAuth listener.

In Strimzi 0.52.0, the dedicated oauth and keycloak authentication types will be removed. OAuth is now configured using type: custom with SASL and the appropriate callback handlers. See the Strimzi proposal for details.

A cluster configuration with multiple listeners and different authentication methods looks like this:

apiVersion: kafka.strimzi.io/v1
kind: Kafka
metadata:
  name: my-kafka-cluster
spec:
  kafka:
    config:
      # Required for OAuth authentication and Keycloak authorization
      principal.builder.class: io.strimzi.kafka.oauth.server.OAuthKafkaPrincipalBuilder
    listeners:
      - name: plain
        port: 9092
        tls: true
        type: internal
      - name: tls
        authentication:
          type: tls
        port: 9093
        tls: true
        type: internal
      - name: oauth
        port: 9094
        tls: true
        type: internal
        authentication:
          type: custom
          sasl: true
          listenerConfig:
            connections.max.reauth.ms: 3600000
            sasl.enabled.mechanisms: OAUTHBEARER
            principal.builder.class: io.strimzi.kafka.oauth.server.OAuthKafkaPrincipalBuilder
            oauthbearer.sasl.server.callback.handler.class: io.strimzi.kafka.oauth.server.JaasServerOauthValidatorCallbackHandler
            oauthbearer.sasl.jaas.config: |
              org.apache.kafka.common.security.oauthbearer.OAuthBearerLoginModule required \
                oauth.valid.issuer.uri="http://keycloak-service.keycloak.svc.cluster.local:8080/realms/kafka" \
                oauth.jwks.endpoint.uri="http://keycloak-service.keycloak.svc.cluster.local:8080/realms/kafka/protocol/openid-connect/certs" \
                oauth.client.id="kafka-broker" \
                oauth.client.secret="${secrets:my-namespace/broker-oauth-secret:secret}" \
                unsecuredLoginStringClaim_sub="unused" \
                oauth.username.claim="preferred_username" \
                oauth.check.issuer="true" \
                oauth.check.audience="true" \
                oauth.http.retries="2" \
                oauth.http.retry.pause.millis="300" \
                oauth.connect.timeout.seconds="10" \
                oauth.read.timeout.seconds="15" \
                oauth.jwks.refresh.seconds="300" \
                oauth.jwks.expiry.seconds="360" \
                oauth.enable.metrics="true" \
                oauth.jwks.min.refresh.pause.seconds="1";
    authorization:
      # Authorization configuration is covered in Part 2
      ...

Key configuration choices:

Fast local JWT validation: The broker validates tokens locally using the JWKS endpoint (oauth.jwks.endpoint.uri) instead of calling Keycloak’s introspection endpoint for every request. This enhances performance and reduces network calls. However, it relies on short-lived tokens and does not handle revoked tokens - the broker validates that the token is signed by the issuer but does not check if it has been revoked. This is partially mitigated with short-lived tokens (configured to 600 seconds in Keycloak). The most secure method would be the introspect endpoint but this requires connecting to Keycloak for every token validation.

Audience check: oauth.check.audience="true" ensures the token’s aud claim contains kafka-broker, preventing tokens issued for other services from being accepted.

Secret reference: The broker client secret is stored as a Kubernetes Secret and referenced using Strimzis KubernetesSecretConfigProvider syntax: ${secrets:NAMESPACE/SECRET_NAME:KEY}.

Inter-broker communication: According to Strimzi it is best to use mTLS for inter-broker communication. This is the default and does not require any change. See the Strimzi documentation for details.

Broker OAuth Secret and RBAC

The broker needs access to its OAuth client secret stored as a Kubernetes Secret:

apiVersion: v1
kind: Secret
metadata:
  name: broker-oauth-secret
type: Opaque
data:
  secret: a2Fma2EtYnJva2VyLXNlY3JldA==  # base64 encoded client secret

For the Kafka pods to read this secret, an additional Role and RoleBinding is required. Make sure you allow the pods to read the secret.

Create Tenant Topics

Define the tenant topics using Strimzis KafkaTopic custom resource. Each topic follows the naming convention <tenant>-topic-demo-v0:

apiVersion: kafka.strimzi.io/v1
kind: KafkaTopic
metadata:
  name: timkoko-topic-demo-v0
  labels:
    strimzi.io/cluster: my-kafka-cluster
spec:
  partitions: 3
  replicas: 3
  config:
    min.insync.replicas: 2
    retention.ms: 3600000
---
apiVersion: kafka.strimzi.io/v1
kind: KafkaTopic
metadata:
  name: acmecorp-topic-demo-v0
  labels:
    strimzi.io/cluster: my-kafka-cluster
spec:
  partitions: 3
  replicas: 3
  config:
    min.insync.replicas: 2
    retention.ms: 3600000
---
apiVersion: kafka.strimzi.io/v1
kind: KafkaTopic
metadata:
  name: umbrellacorp-topic-demo-v0
  labels:
    strimzi.io/cluster: my-kafka-cluster
spec:
  partitions: 3
  replicas: 3
  config:
    min.insync.replicas: 2
    retention.ms: 3600000

Because the authorization resources use prefix matching (Topic:timkoko-*), any topic starting with the tenant name is automatically covered by the respective permissions.

Keycloak User Setup

All Keycloak configuration is done in the kafka realm via the Keycloak Admin REST API.

Port-forwarding for local access: If Keycloak is running inside the Kubernetes cluster and not accessible from outside, use port-forwarding to access the admin API from your local machine:
kubectl port-forward -n keycloak svc/keycloak-service 8080:8080
This makes Keycloak available at http://localhost:8080. All curl commands in this guide target this local address. Adjust the URL if your Keycloak instance is exposed differently.

Obtain Admin Token

All API calls require a Keycloak admin token:

KEYCLOAK_URL="http://localhost:8080"
REALM="kafka"

TOKEN=$(curl -s \
  -d "client_id=admin-cli" \
  -d "username=admin" \
  -d "password=blog-demo" \
  -d "grant_type=password" \
  "${KEYCLOAK_URL}/realms/master/protocol/openid-connect/token" \
  | jq -r .access_token)

Create the Broker Client

The kafka-broker client is used by the Kafka brokers. It has Authorization Services enabled (used in Part 2):

curl -s -X POST "${KEYCLOAK_URL}/admin/realms/${REALM}/clients" \
  -H "Authorization: Bearer ${TOKEN}" \
  -H "Content-Type: application/json" \
  -d '{
    "clientId": "kafka-broker",
    "name": "kafka-broker",
    "description": "technical client for kafka-broker",
    "protocol": "openid-connect",
    "publicClient": false,
    "bearerOnly": false,
    "directAccessGrantsEnabled": false,
    "serviceAccountsEnabled": true,
    "standardFlowEnabled": false,
    "authorizationServicesEnabled": true,
    "clientAuthenticatorType": "client-secret",
    "secret": "kafka-broker-secret",
    "attributes": {
      "access.token.lifespan": "600"
    },
    "defaultClientScopes": ["openid", "profile"],
    "optionalClientScopes": [],
    "protocolMappers": []
  }'

The authorizationServicesEnabled: true setting enables the Keycloak Authorization Services on this client. This is a prerequisite for the authorization setup in Part 2.

Create Tenant Clients

Each tenant gets a service account client. These clients do not have Authorization Services enabled - they are regular OAuth clients that authenticate using client_credentials:

for tenant in timkoko acmecorp umbrellacorp; do
  curl -s -X POST "${KEYCLOAK_URL}/admin/realms/${REALM}/clients" \
    -H "Authorization: Bearer ${TOKEN}" \
    -H "Content-Type: application/json" \
    -d '{
      "clientId": "'${tenant}'",
      "name": "'${tenant}'",
      "description": "technical client for '${tenant}'",
      "protocol": "openid-connect",
      "publicClient": false,
      "bearerOnly": false,
      "directAccessGrantsEnabled": false,
      "serviceAccountsEnabled": true,
      "standardFlowEnabled": false,
      "authorizationServicesEnabled": false,
      "clientAuthenticatorType": "client-secret",
      "secret": "'${tenant}'-secret",
      "attributes": {
        "access.token.lifespan": "600"
      },
      "defaultClientScopes": ["openid", "profile"],
      "optionalClientScopes": [],
      "protocolMappers": []
    }'
done

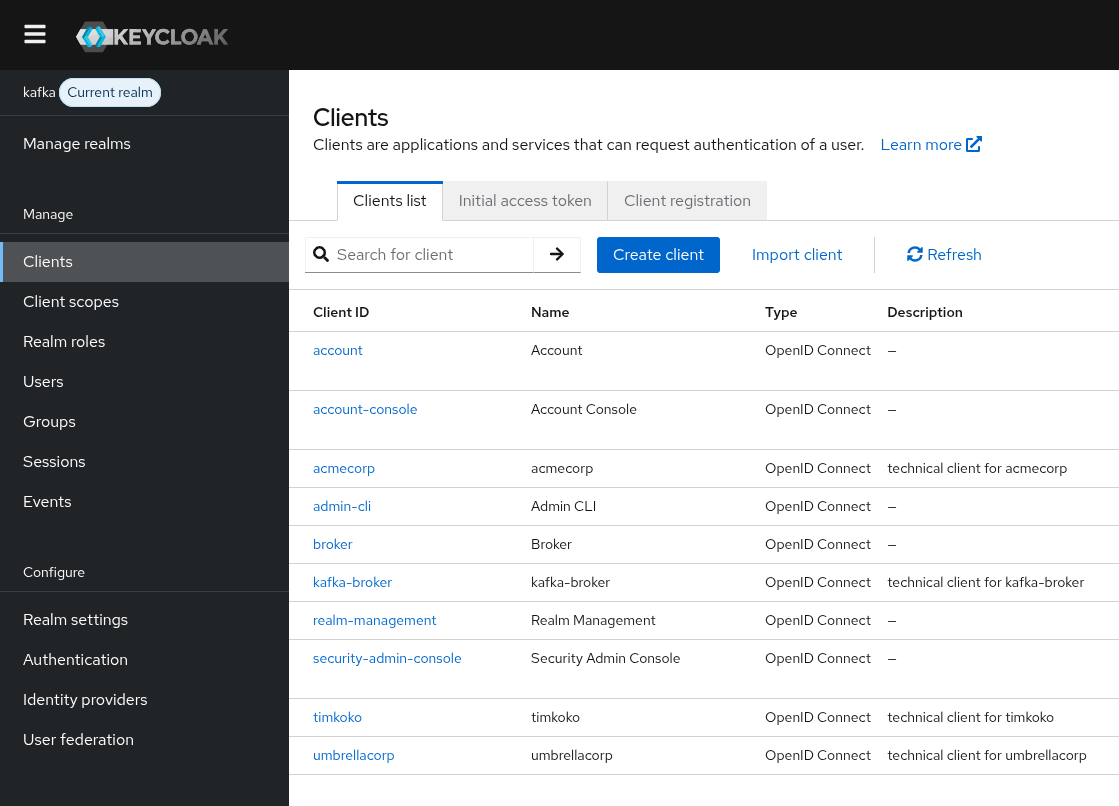

Final view of the clients:

Add Audience Mapper

Every client needs an audience mapper so the issued JWT contains aud: kafka-broker. This is required because the broker is configured with oauth.check.audience="true" and validates that the token was explicitly issued for Kafka.

To allow checking the audience, we add an audience mapper for each client. This adds the aud: kafka-broker field to the token:

CLIENTS=$(curl -s -H "Authorization: Bearer ${TOKEN}" "${KEYCLOAK_URL}/admin/realms/${REALM}/clients")

for client_id in kafka-broker timkoko acmecorp umbrellacorp; do
  CLIENT_UUID=$(echo ${CLIENTS} | jq -r ".[] | select(.clientId==\"${client_id}\") | .id")

  curl -s -X POST "${KEYCLOAK_URL}/admin/realms/${REALM}/clients/${CLIENT_UUID}/protocol-mappers/models" \
    -H "Authorization: Bearer ${TOKEN}" \
    -H "Content-Type: application/json" \
    -d '{
      "name": "kafka-audience",
      "protocol": "openid-connect",
      "protocolMapper": "oidc-audience-mapper",
      "consentRequired": false,
      "config": {
        "included.client.audience": "kafka-broker",
        "id.token.claim": "true",
        "access.token.claim": "true"
      }
    }'
done

Create Groups and Assign Service Accounts

For demonstration purpose, each tenant gets a parent group with reader and writer subgroups. The tenants service account is added to both subgroups. Having distinct reader and writer groups allows giving specific read-access when needed, for example for debugging purposes on a development stage.

for tenant in timkoko acmecorp umbrellacorp; do
  # Create parent group
  curl -s -X POST "${KEYCLOAK_URL}/admin/realms/${REALM}/groups" \
    -H "Authorization: Bearer ${TOKEN}" \
    -H "Content-Type: application/json" \
    -d "{\"name\": \"${tenant}\"}"

  PARENT_ID=$(curl -s -H "Authorization: Bearer ${TOKEN}" \
    "${KEYCLOAK_URL}/admin/realms/${REALM}/groups?search=${tenant}" \
    | jq -r '.[0].id')

  # Create reader and writer subgroups
  for subgroup in "${tenant}-reader" "${tenant}-writer"; do
    curl -s -X POST "${KEYCLOAK_URL}/admin/realms/${REALM}/groups/${PARENT_ID}/children" \
      -H "Authorization: Bearer ${TOKEN}" \
      -H "Content-Type: application/json" \
      -d "{\"name\": \"${subgroup}\"}"
  done

  # Add the service account to both groups
  CLIENT_UUID=$(curl -s -H "Authorization: Bearer ${TOKEN}" \
    "${KEYCLOAK_URL}/admin/realms/${REALM}/clients" \
    | jq -r ".[] | select(.clientId==\"${tenant}\") | .id")

  SA_UUID=$(curl -s -H "Authorization: Bearer ${TOKEN}" \
    "${KEYCLOAK_URL}/admin/realms/${REALM}/clients/${CLIENT_UUID}/service-account-user" \
    | jq -r '.id')

  for subgroup in "${tenant}-reader" "${tenant}-writer"; do
    GROUP_ID=$(curl -s -H "Authorization: Bearer ${TOKEN}" \
      "${KEYCLOAK_URL}/admin/realms/${REALM}/groups/${PARENT_ID}/children?search=${subgroup}" \
      | jq -r '.[0].id')

    curl -s -X PUT \
      -H "Authorization: Bearer ${TOKEN}" \
      "${KEYCLOAK_URL}/admin/realms/${REALM}/users/${SA_UUID}/groups/${GROUP_ID}"
  done
done

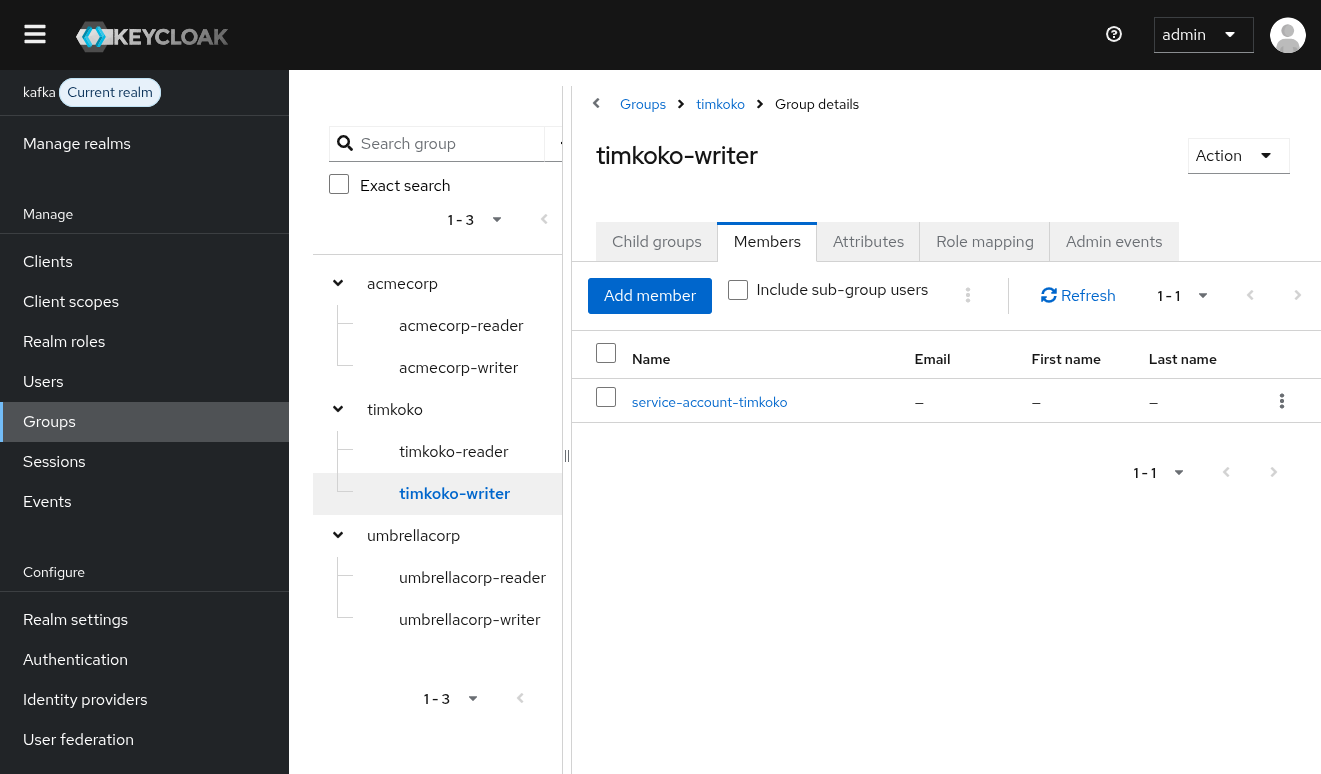

The resulting group structure looks like this:

timkoko
- timkoko-reader
- timkoko-writer
acmecorp
- acmecorp-reader
- acmecorp-writer
umbrellacorp
- umbrellacorp-reader
- umbrellacorp-writer

Verify Authentication

With the broker and Keycloak clients configured, we can verify that OAuth authentication works by obtaining a token and inspecting it.

Obtain and Inspect a Token

Fetch a client_credentials token for the timkoko client:

ACCESS_TOKEN=$(curl -s "${KEYCLOAK_URL}/realms/${REALM}/protocol/openid-connect/token" \
  -d "client_id=timkoko" \
  -d "client_secret=timkoko-secret" \
  -d "grant_type=client_credentials" \
  | jq -r .access_token)

echo ${ACCESS_TOKEN}

Decode and inspect the token payload:

echo ${ACCESS_TOKEN} | jq -R 'split(".") | .[1] | @base64d | fromjson'

The decoded token should contain (among other fields):

{
  "iss": "http://keycloak-service.keycloak.svc.cluster.local:8080/realms/kafka",
  "sub": "...",
  "aud": "kafka-broker",
  "typ": "Bearer",
  "preferred_username": "service-account-timkoko",
  "azp": "timkoko",
  "scope": "openid profile",
  "client_id": "timkoko",
  "iat": 1234567290,
  "exp": 1234567890
}

Verify the following:

aud contains kafka-broker - the audience mapper is working
preferred_username is set - the broker uses this as the Kafka principal via oauth.username.claim
exp is approximately 600 seconds in the future - the token lifespan is configured correctly

Test Authentication from a Kafka CLI Pod

To test end-to-end authentication against the Kafka cluster, use a CLI pod running inside the Kubernetes cluster.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: kafka-cli
  labels:
    app: kafka-cli
spec:
  replicas: 1
  selector:
    matchLabels:
      app: kafka-cli
  template:
    metadata:
      labels:
        app: kafka-cli
    spec:
      containers:
        - name: kafka
          env:
          - name: KAFKA_OPTS
            value: -Dorg.apache.kafka.sasl.oauthbearer.allowed.urls=http://keycloak-service.keycloak.svc.cluster.local:8080/realms/kafka/protocol/openid-connect/token
          - name: TRUSTSTORE_PASSWORD
            valueFrom:
              secretKeyRef:
                key: ca.password
                name: my-kafka-cluster-cluster-ca-cert
          image: quay.io/strimzi/kafka:0.49.0-kafka-4.1.1
          command:
            - tail
            - -f
            - /dev/null
          resources:
            requests:
              memory: "256Mi"
              cpu: "100m"
            limits:
              memory: "512Mi"
              cpu: "500m"
          volumeMounts:
          - mountPath: /certs/truststore.p12
            name: cluster-cert
            subPath: ca.p12
      volumes:
      - name: cluster-cert
        secret:
          defaultMode: 420
          secretName: my-kafka-cluster-cluster-ca-cert

The following example uses the Apache Kafka OAuthBearerLoginCallbackHandler:

# From inside the CLI pod with Kafka CLI tools and access to the cluster CA certificate
cat > /tmp/client.properties <<EOF
bootstrap.servers=my-kafka-cluster-kafka-bootstrap:9094
security.protocol=SASL_SSL
sasl.mechanism=OAUTHBEARER
sasl.jaas.config=org.apache.kafka.common.security.oauthbearer.OAuthBearerLoginModule required;
sasl.login.callback.handler.class=org.apache.kafka.common.security.oauthbearer.OAuthBearerLoginCallbackHandler
sasl.oauthbearer.client.credentials.client.id=timkoko
sasl.oauthbearer.client.credentials.client.secret=timkoko-secret
sasl.oauthbearer.token.endpoint.url=http://keycloak-service.keycloak.svc.cluster.local:8080/realms/kafka/protocol/openid-connect/token
ssl.truststore.type=PKCS12
ssl.truststore.location=/certs/truststore.p12
ssl.truststore.password=${TRUSTSTORE_PASSWORD}
EOF

# List topics - should authenticate successfully
./bin/kafka-topics.sh --bootstrap-server my-kafka-cluster-kafka-bootstrap:9094 --command-config /tmp/client.properties --list

If authentication is successful, the command connects to the broker and returns the list of topics. If the token or audience is invalid, you will see an SaslAuthenticationException.

Alternatively, using the Strimzi JaasClientOauthLoginCallbackHandler:

cat > /tmp/client-strimzi.properties <<EOF
bootstrap.servers=my-kafka-cluster-kafka-bootstrap:9094
security.protocol=SASL_SSL
sasl.mechanism=OAUTHBEARER
sasl.jaas.config=org.apache.kafka.common.security.oauthbearer.OAuthBearerLoginModule required \
  oauth.token.endpoint.uri="http://keycloak-service.keycloak.svc.cluster.local:8080/realms/kafka/protocol/openid-connect/token";
sasl.login.callback.handler.class=io.strimzi.kafka.oauth.client.JaasClientOauthLoginCallbackHandler
ssl.truststore.type=PKCS12
ssl.truststore.location=/certs/truststore.p12
ssl.truststore.password=${TRUSTSTORE_PASSWORD}
EOF

# Set credentials via environment variables
export OAUTH_CLIENT_ID=timkoko
export OAUTH_CLIENT_SECRET=timkoko-secret

# List topics - should authenticate successfully
./bin/kafka-topics.sh --bootstrap-server my-kafka-cluster-kafka-bootstrap:9094 --command-config /tmp/client-strimzi.properties --list

The Strimzi JaasClientOauthLoginCallbackHandler provides improved logging, metrics, enhanced caching and retries for token handling. It is easier to use in a Kubernetes setup as it supports configuration using environment variables. However, it requires the strimzi-kafka-oauth-client library which might not be available in all environments. The Apache Kafka OAuthBearerLoginCallbackHandler is production-ready since Kafka 2.8 and is available in all Kafka distributions.

What’s Next

At this point, all tenant clients can authenticate against the Kafka cluster using OAuth tokens issued by Keycloak. However, there are no authorization rules in place yet - any authenticated client can access any topic.

In Part 2, we configure the KeycloakAuthorizer on the Kafka broker and set up Keycloak’s Authorization Services with scopes, resources, policies, and permissions to enforce fine-grained, multi-tenant access control.

Do you need help or guidance?

Do you need help setting up OAuth authentication for your Kafka cluster or do you have general questions about Apache Kafka? Do not hesitate to contact us.
